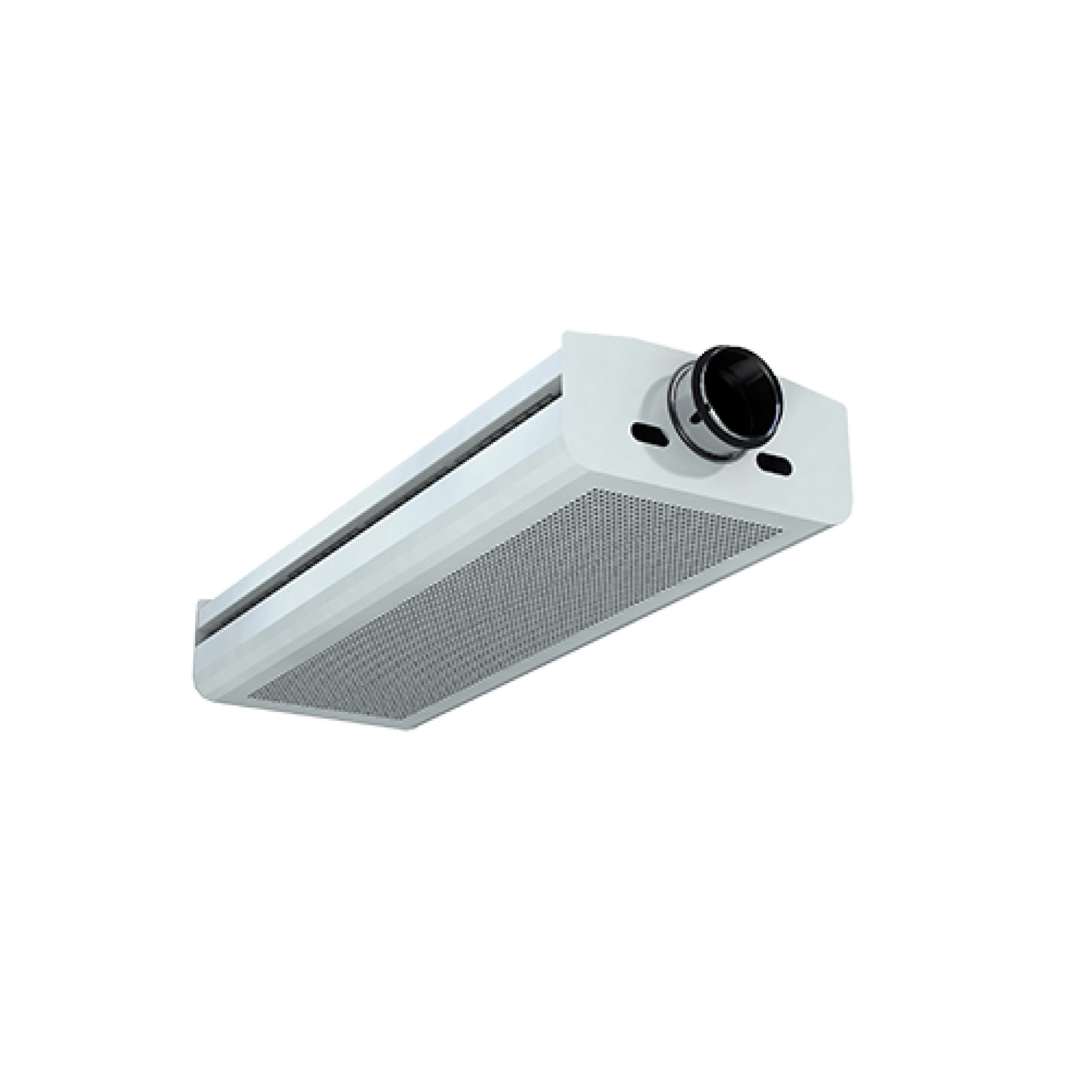

NOVA II IQFI Chilled Beam
The Nova II IQFI exposed, active chilled beam has aesthetic appeal while delivering precise heating, cooling, and ventilation.
Key Differentiators
- Exposed aesthetic excellence: Round or rectangular profiles blend subtly into any ceiling while remaining visually exposed.
- Precision airflow control: Variable nozzles and built-in adjustable blades with four angle settings provide optimal air flow direction.
- Smart occupancy adaptation: Optional Pi® actuator automatically matches ventilation to room occupancy with three intelligent modes.
- Pressure independent capability: The Pi Actuator allows the beam to work with any existing duct system, making it perfect for retrofit applications.
- Energy optimization: Demand-controlled ventilation eliminates energy waste while maintaining comfort.
Product Details
| Applications | Education, Government, Healthcare, Hospitality, Labs, Marine, Office and Commercial, Pharma |
|---|---|
| Length | 47.3" – 129.9" (every 11.8") |
| Operational Noise Levels | <20 – 31 dB |
| Nozzles | 0-36 mm |
| Coil Type | Water coil heating and/or cooling (2 or 4 pipe coil) |
| Mount | Exposed; free-hanging, ceiling mount |
| Optional Accessories | Fastening brackets, purging nipple, Pi Actuator, STRA-24 Room Controller, duct enclosure, Neuton Pump Module |
Product Overview
The NOVA II IQFI is an exposed, active chilled beam that delivers heating, cooling, and ventilation with adjustable blade angles (0°-45°) for precise airflow control. The optional Pi® Actuator provides smart demand-controlled ventilation with pressure-independent operation, enabling seamless integration with any duct system for new construction or retrofit applications.
Key Features and Benefits
- Precise ventilation, heating, and cooling
- Profile options: Round or rectangular configurations
- Adjustable induction (energy control) and air diffusion (flow pattern control)
- Three occupancy-based modes (unoccupied, standard, high occupancy) for optimal efficiency with the Pi Actuator
- Optional factory-mounted integrated controls
- Condensation-free design: Proper latent load control eliminates condensation risk and the need for drain pans, providing worry-free operation.
