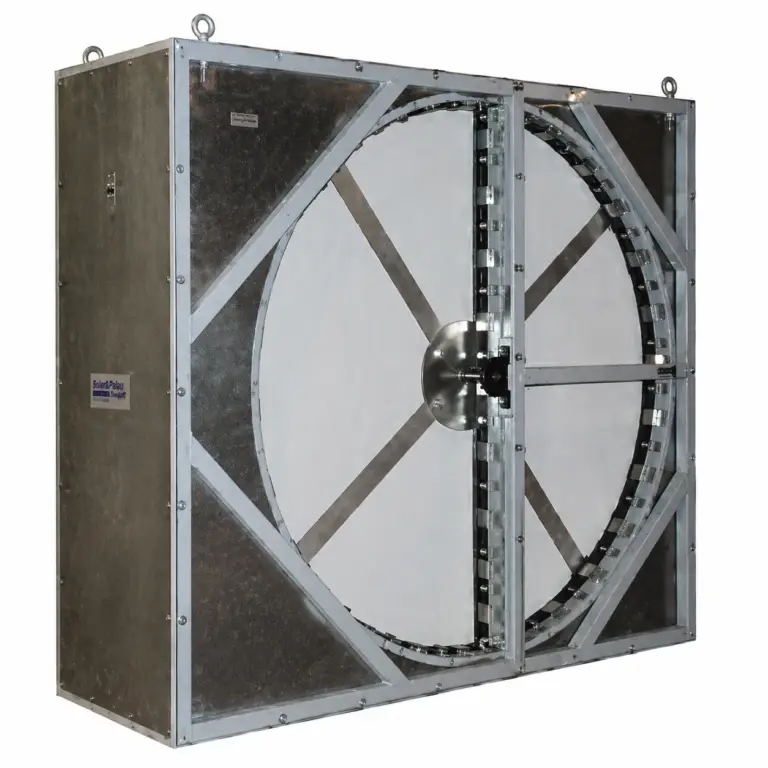

Unitary Wheel Cassette (UWC) and Cross Cassette
Key Differentiators
- Fast and easy installation: Designed as a slide-in replacement and has dimpled polymer plastic wheels in most applications
- Laminar flow flute design: Low pressure drop with self-cleaning properties
- Multiple configurations: Fits almost any unit configuration
Product Details
| Applications | Casinos, Education, Government, Hospitality, Office and Commercial |
|---|---|

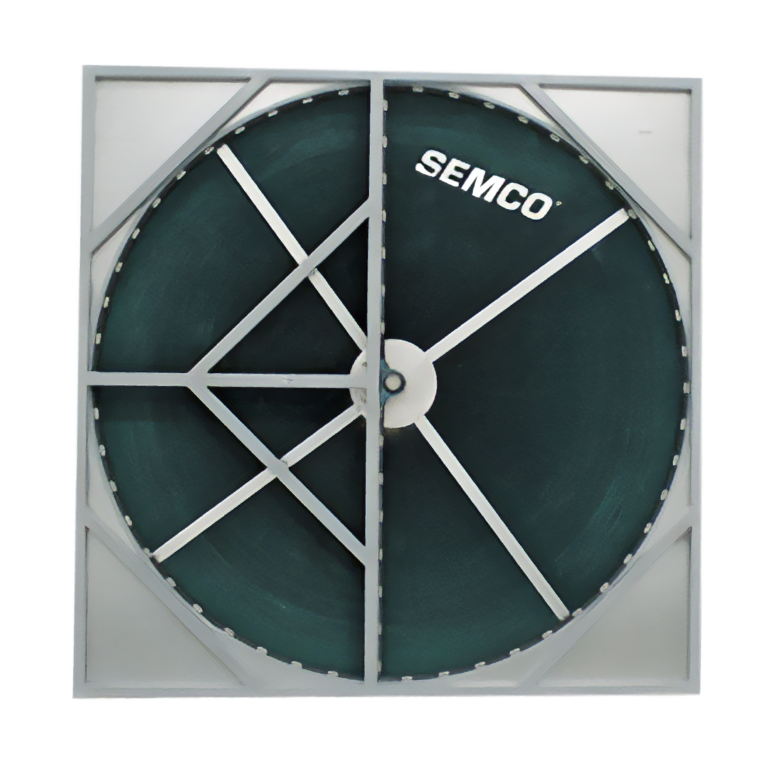

| Media | Fusion or Fusion 3Å |
| Airflow Range | 930 – 24,700 CFM |
| Voltage Options | 208/230V 1PH, 208/230V 3PH, 460V 3PH, 575V 3PH |
| Dimensional Range | 40" x 40" – 118" x 118" |
| Media Depth | 100mm (4") / 150mm (6") |
| Cassette Material | Galvanized or stainless steel |
| Specifications | Slide-in retrofit design, Laminar flow flute design, Corrosion-resistant ceramic coating, VFD-ready gearmotor option, Hybrid brush/barrier seals, Non-oxidized aluminum media, Retrofit-ready for major ERWs, Six motor placement options, Optional face coatings |
Product Literature
Product Certifications
- SEMCO UWC-30 AHRI Certificate
- SEMCO UWC-36 AHRI Certificate
- SEMCO UWC-41 AHRI Certificate
- SEMCO UWC-46 AHRI Certificate
- SEMCO UWC-52 AHRI Certificate
- SEMCO UWC-58 AHRI Certificate
- SEMCO UWC-64 AHRI Certificate
- SEMCO UWC-68 AHRI Certificate
- SEMCO UWC-74 AHRI Certificate
- SEMCO UWCH-30 AHRI Certificate
- SEMCO UWCH-36 AHRI Certificate
- SEMCO UWCH-41 AHRI Certificate
- SEMCO UWCH-46 AHRI Certificate
- SEMCO UWCH-52 AHRI Certificate
- SEMCO UWCH-58 AHRI Certificate
- SEMCO UWCH-64 AHRI Certificate
- SEMCO UWCH-68 AHRI Certificate
- SEMCO UWCH-74 AHRI Certificate
Product Overview
FläktGroup SEMCO offers two different cassette options: the Classic Cassette and the Cross Cassette. Both lines feature the same quality and performance customers have come to expect from FläktGroup SEMCO wheels. The Classic Cassette, which first hit the market in 2014, features narrower cassette dimensions. The Cross Cassette line has broader dimensions and is available with both 4″ and 6″ media depths.
The Unitary Wheel Cassette line has a unique transfer core that gives it the performance edge. The fluted-opening design uses a sturdy, but lightweight, all-aluminum wheel substrate coated with a fast-acting, corrosion-resistant, proprietary desiccant. This design efficiently produces maximum latent and sensible air-to-air heat transfer, but it generates up to 50 percent less HVAC system static pressure than polymer film wheels.
Key Features and Benefits
- Ceramic coating: Corrosion resistant
- VFD-ready gearmotor option: Control wheel speed to ensure proper operation throughout the heating months
- Hybrid brush/barrier seals: Minimize air leakage and wheel bypass, thanks to the low pressure drop through the wheel
- Non-oxidized aluminum media: Adds structural integrity, which gives these wheels a long lifecycle
- Retrofit ready: Designed to replace other major manufacturers’ standard ERWs without any unit modifications
- Six motor placement options: Offers fit and function, even when space is limited
- Optional face coatings: Anti-corrosion, anti-microbial, and anti-stick for special applications
