Modular Duct (MD) Panel
Key Differentiators
- Ease of installation provided by tongue-and-groove joint and factory-supplied cutouts
- Independent testing for acoustical, thermal, and structural performance
- Excellent cost-to-performance ratio
Product Details
| Applications | Casinos, Clean Rooms, Data Centers, Education, Government, Healthcare, Hospitality, Labs, Office and Commercial, Pharma |
|---|---|
| Skin Material | Galvanized steel, galvanneal, aluminum, stainless steel |
| Thickness/R-Value | 2"/R10, 4"/R16, 6"/R20 |
| Max. Height | 20' |
| Finish | Mill, field paintable, powder coat |
| Fire Rating | ASTM E84 Class A |
| Specifications | Tongue-and-groove joint, Fully insulated joint, Structurally sound up to 18' free spans, Factory-cut and framed openings, Ideal for high-pressure applications, Excellent cost-to-performance ratio |
Product Literature
Product Overview

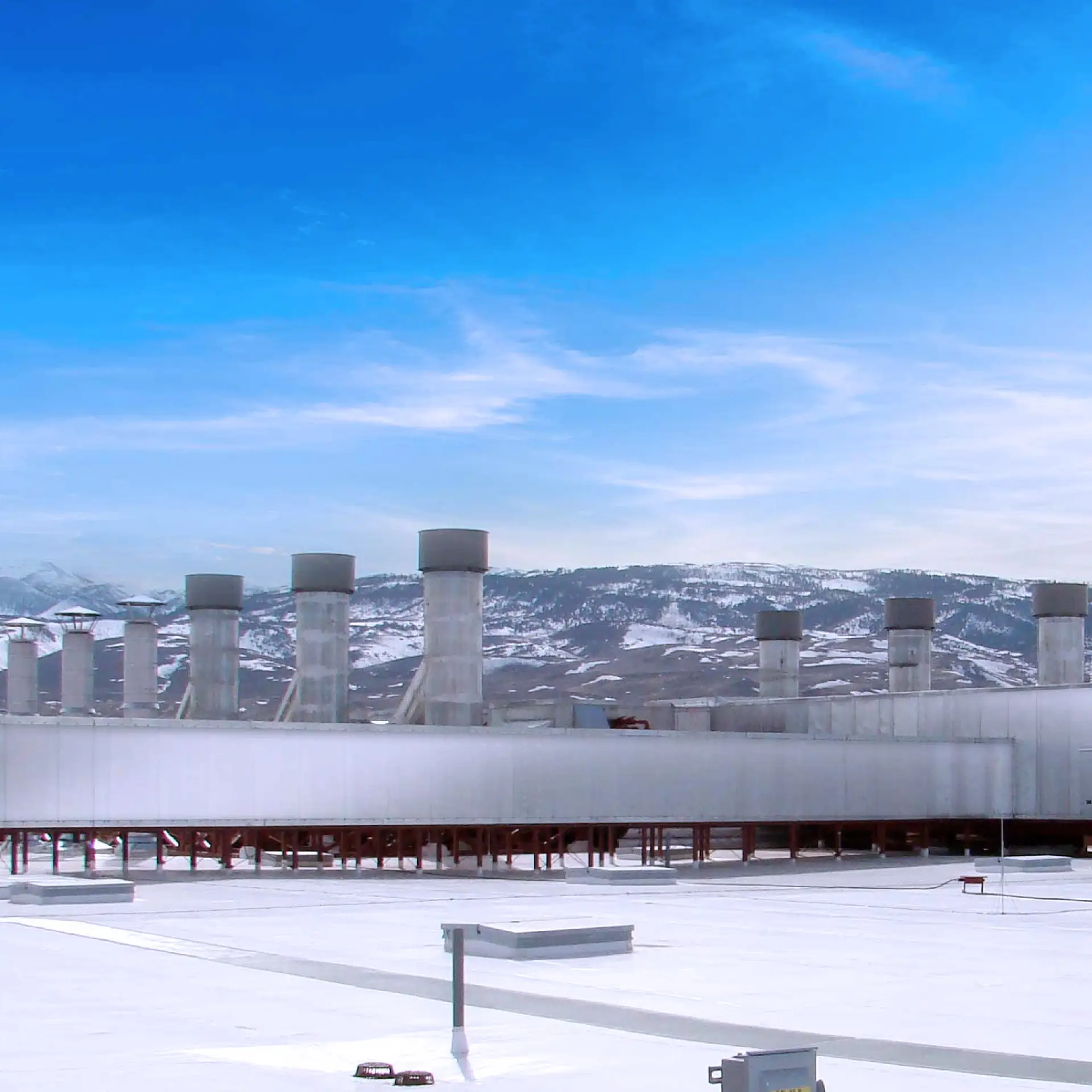

Leveraging the FläktGroup® SEMCO MD Panel System using acoustical panels is much easier and more affordable than constructing double-wall rectangular duct in the field. It is the most efficient and cost-effective way of installing large double-wall rectangular duct extending beyond a plenum or housing.
SEMCO MD Panel Systems are designed with an integrated structure, eliminating much of the expensive structural steel and fabrication labor required when fabricating large, field-built double-wall duct. This design — combined with the “no screws” tongue-and-groove joint, factory engineered details, and complete assembly drawings — provides a complete and affordable pre-engineered “system.”
For engineered execution, time savings, cost reduction, and simplified project management, build smarter with SEMCO Panel Solutions.
Key Features and Benefits
- Tongue-and-groove joint: Requires no screws in the joint, lessening installation time and leak potential
- Fully insulated joint: Reduces labor compared to field-insulated joints while ensuring acoustical and thermal performance
- Structurally sound: Allows for free span lengths up to 18 feet, reducing external and internal support steel required for large ducts
- Factory-cut and framed openings: Decreases field labor
- Design and construction ideal for high-pressure applications
