EP (Energy Package) System
The EP series delivers superior total energy recovery performance, transferring both latent and sensible energy while removing contaminants through our proven True 3Å Total Enthalpy Wheel technology.
Key Differentiators
- Independently certified wheel performance in accordance with ASHRAE Standard 84-2024 and AHRI Standard 1060 with regards to latent heat transfer efficiency, sensible heat transfer efficiency (up to 90% efficiency), and pressure loss across wheel
- Exceptional indoor air quality, which keeps people safe and healthy; up to 99.95% effective at eliminating surface viruses, bacteria, and cross-contamination
- Suitabile for new construction and ability to be retrofitted to most existing facilities
-
35+ years of verified performance and tested reliability
Product Details
| Applications | Casinos, Education, Government, Healthcare, Hospitality, Labs, Marine, Office and Commercial, Pharma |
|---|---|
| Airflow Range | 2, 000 – 40, 000 SCFM |
| Min. Dew Point | 50° – 55°F |
| Min. Moisture | 50 – 65 grains |
| Min. Humidity | 54% – 62% |
| Est. Operating Cost | $11, 450/year |
| Max. Dimensions (W x H x L) | 182.25" x 146.25" x 364" |
| Specifications | True 3Å total energy recovery wheel, Sensible Energy Wheel option (EPD), 30% MERV 8 filters, Dual-wall panel construction (R‑13), Field-adjustable purge section, EC or plenum AC fans |
Product Literature
Product Overview

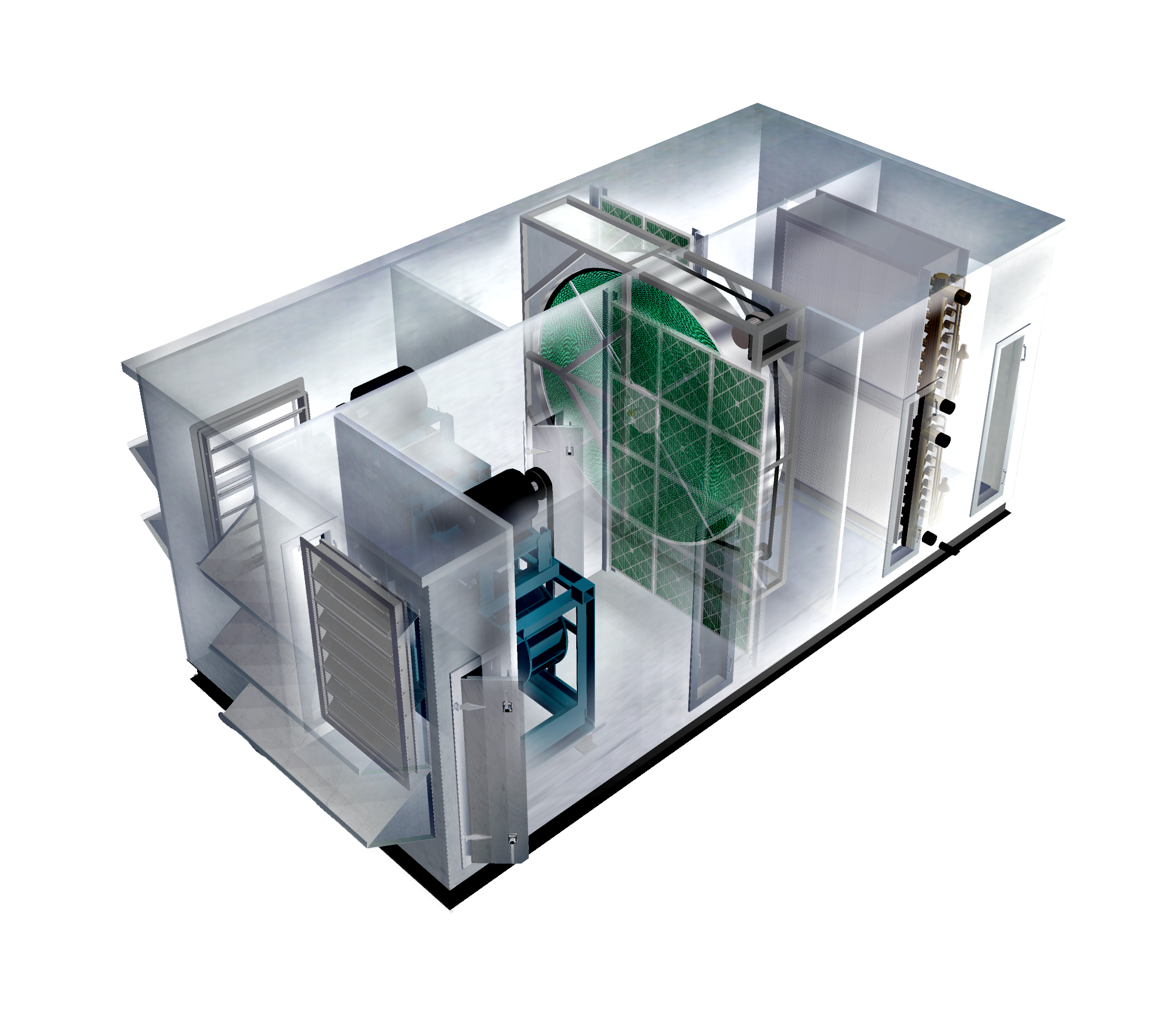

The FläktGroup® SEMCO® EP Series Energy Package is a pre-engineered, factory-assembled packaged energy recovery system that delivers up to 90% total energy recovery (latent + sensible) while preconditioning outdoor air for HVAC systems or providing full space conditioning with integrated heating/cooling options.
Key Features and Benefits
- True 3Å total energy recovery wheel
- Sensible Energy Wheel (EPD only): Sensible only wheel is polymer coated to avoid oxidation and future transferring of moisture.
- Provided filters that are 30% MERV 8 efficient for the indoor and return air streams
- Dual-wall panel construction (2 inches thick with 20-gauge outer skin), which eliminates exposed insulation (R-13) and the associated risk of bacterial growth
- Field-adjustable purge section
- EC fans or plenum AC fans as available options
- AMCA-certified performance fans
- Highly customizable (9 sizes, 2,000-40,000 SCFM)
