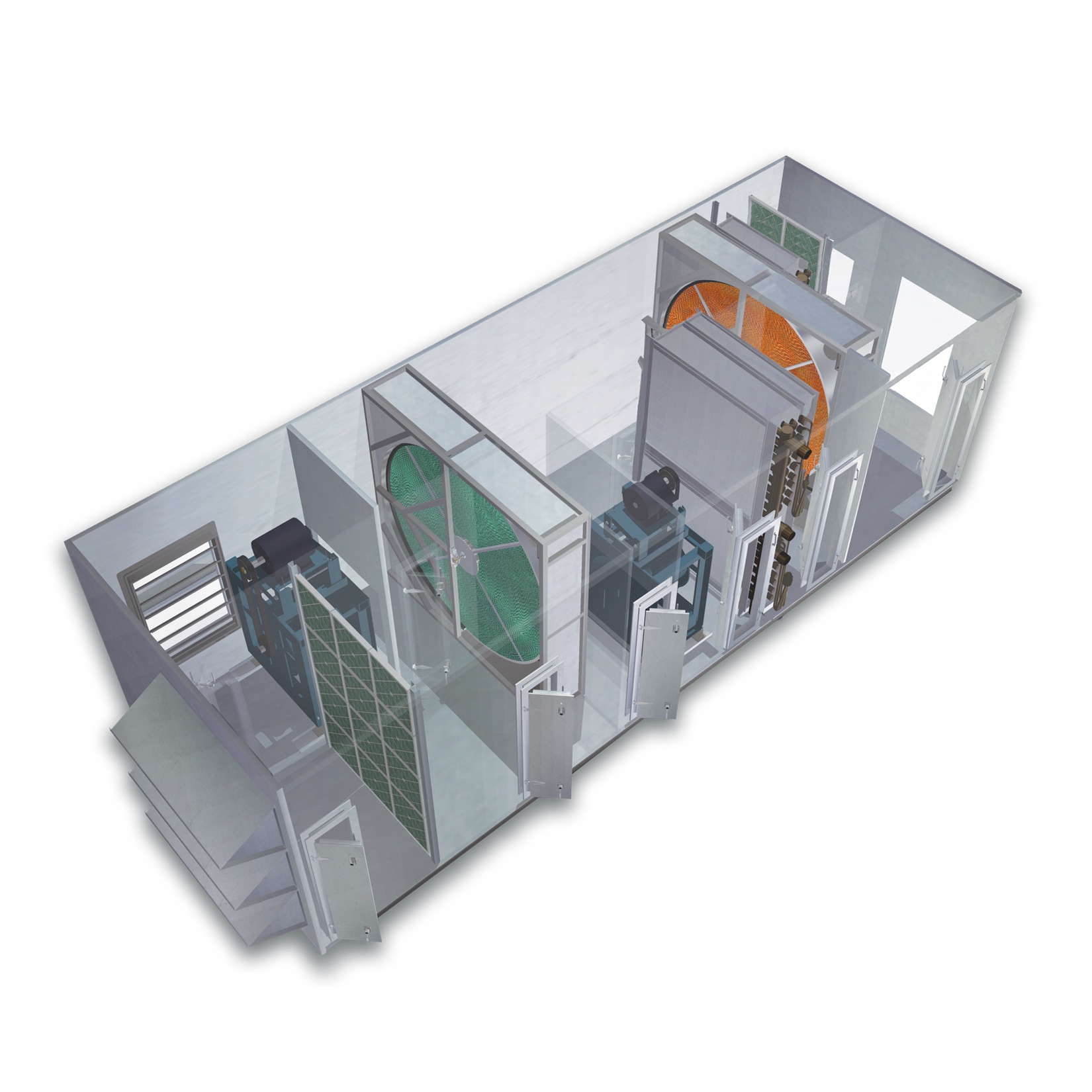

Pinnacle® DOAS Series
Key Differentiators
- Very high degree of latent cooling using a minimal amount of conventional cooling input
- Constant stream of optimally conditioned ventilation air into the space while exhausting stale, polluted air out
- Substantial energy savings over traditional over-cooling and reheat systems
- Lower installation costs due to reduced demand for overall heating and cooling capacity
- Competitive first cost with up to three times the latent load capacity versus competitive units
- Most efficient system on the market today with the best humidity control under all conditions
Product Details
| Applications | Aerospace, Casinos, Education, Government, Healthcare, Hospitality, Labs, Marine, Office and Commercial, Pharma |
|---|---|
| Airflow Range | 2,000 – 37,000 SCFM |
| Min. Dew Point | 40° – 48°F |
| Min. Moisture | 38 – 51 grains |
| Min. Humidity | 40% – 50% |
| Est. Operating Cost | $35,150/year |
| Max. Dimensions (W x H x L) | 182.25" x 146.25" x 417" |
| Specifications | True 3Å total energy wheel + passive dehumidification wheel, 30% MERV 8 filters, Dual-wall panel construction (R‑13), Field-adjustable purge, EC or plenum AC fans, Optional unoccupied run mode |
Product Overview
The Pinnacle series manages 100 percent of a building’s humidity, temperature, and ventilation in a single package. It combines the strengths of passive total energy recovery, conventional cooling technology, and a new class of desiccant product–the passive dehumidification wheel–to supply perfect ventilation. Pinnacle is optimized to remove moisture from a saturated air stream without an active regeneration source.
Key Features and Benefits
- True 3Å total energy wheel and passive dehumidification wheel: The unit supplies preconditioned outdoor air to conventional HVAC systems or directly to the conditioned space to effectively increase outdoor air percentages.
- Filters that are 30% MERV 8 efficient: Provided for the indoor and return air streams
- Dual-wall panel construction (2 inches thick with 20-gauge outer skin): Eliminates exposed insulation (R-13) and the associated risk of bacterial growth
- Field-adjustable purge section
- EC fans or plenum AC fans as available options
- Optional unoccupied run mode: Evenings, weekends, and summer
- Significant reduction in the required cooling input during the cooling season: Pre-cools and dehumidifies outdoor supply air
- Most reliable wheel performance: No SEMCO® wheel has ever failed an AHRI certification test.
